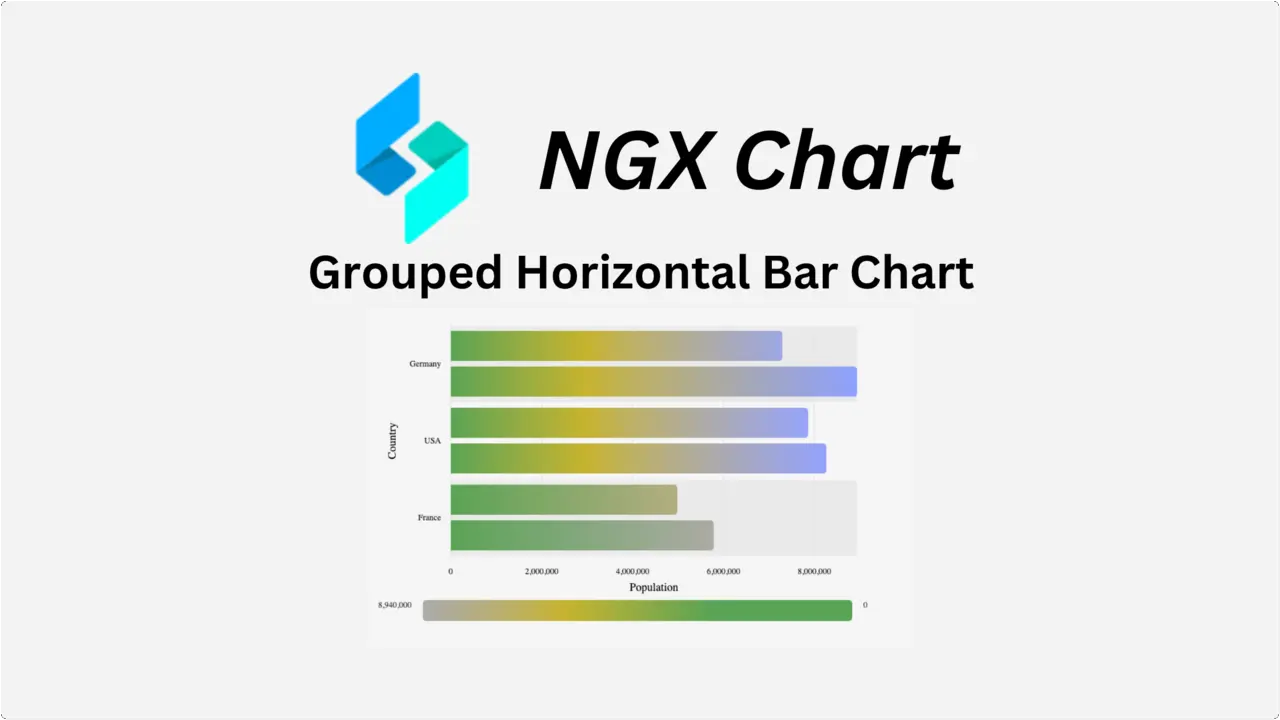

NGX Charts Grouped Horizontal Bar Chart

Before diving into using NGX bar charts, it’s essential to ensure that NGX Charts are installed and integrated with Angular. I’ve previously covered the detailed process of getting started with NGX Charts in another article. I highly recommend referring to that resource before proceeding with NGX bar charts implementation. It will provide valuable insights into setting up and leveraging NGX Charts within Angular applications, laying a solid foundation for incorporating specific chart types like NGX bar charts.

Grouped Horizontal Bar Chart

Example

{{< tabs “ngx-chart” >}}

{{< tab “app.module.ts” >}}

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { FormsModule } from '@angular/forms';
import { BrowserAnimationsModule } from '@angular/platform-browser/animations';
import { NgxChartsModule } from '@swimlane/ngx-charts';

import { AppComponent } from './app.component';

@NgModule({
  imports:      [
    BrowserModule,
    FormsModule,
    NgxChartsModule,
    BrowserAnimationsModule
],
  declarations: [ AppComponent ],
  bootstrap:    [ AppComponent ]
})
export class AppModule { }

{{< /tab >}}

{{< tab “app.component.ts” >}}

import { Component, NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { NgxChartsModule } from '@swimlane/ngx-charts';
import { multi } from './data';

@Component({
  selector: 'my-app',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {
  multi: any[];
  view: any[] = [700, 400];

  // options
  showXAxis: boolean = true;
  showYAxis: boolean = true;
  gradient: boolean = false;
  showLegend: boolean = true;
  legendPosition: string = 'below';
  showXAxisLabel: boolean = true;
  yAxisLabel: string = 'Country';
  showYAxisLabel: boolean = true;
  xAxisLabel = 'Population';

  colorScheme = {
    domain: ['#5AA454', '#C7B42C', '#AAAAAA']
  };
  schemeType: string = 'linear';

  constructor() {
    Object.assign(this, { multi });
  }

  onSelect(data): void {
    console.log('Item clicked', JSON.parse(JSON.stringify(data)));
  }

  onActivate(data): void {
    console.log('Activate', JSON.parse(JSON.stringify(data)));
  }

  onDeactivate(data): void {
    console.log('Deactivate', JSON.parse(JSON.stringify(data)));
  }
}

{{< /tab >}}

{{< tab “app.component.html” >}}

<ngx-charts-bar-horizontal-2d
  [view]="view"
  [scheme]="colorScheme"
  [schemeType]="schemeType"
  [results]="multi"
  [gradient]="gradient"
  [xAxis]="showXAxis"
  [yAxis]="showYAxis"
  [legend]="showLegend"
  [legendPosition]="legendPosition"
  [showXAxisLabel]="showXAxisLabel"
  [showYAxisLabel]="showYAxisLabel"
  [xAxisLabel]="xAxisLabel"
  [yAxisLabel]="yAxisLabel"
  (select)="onSelect($event)"
  (activate)="onActivate($event)"
  (deactivate)="onDeactivate($event)"
  >
</ngx-charts-bar-horizontal-2d>

{{< /tab >}}

{{< tab “data.ts” >}}

export var multi = [
  {
    "name": "Germany",
    "series": [
      {
        "name": "2010",
        "value": 7300000
      },
      {
        "name": "2011",
        "value": 8940000
      }
    ]
  },

  {
    "name": "USA",
    "series": [
      {
        "name": "2010",
        "value": 7870000
      },
      {
        "name": "2011",
        "value": 8270000
      }
    ]
  },

  {
    "name": "France",
    "series": [
      {
        "name": "2010",
        "value": 5000002
      },
      {
        "name": "2011",
        "value": 5800000
      }
    ]
  }
];

{{< /tab >}}

{{< /tabs >}}

Input

Output

Data Format

[
  {
    "name": "Germany",
    "series": [
      {
        "name": "2010",
        "value": 7300000
      },
      {
        "name": "2011",
        "value": 8940000
      }
    ]
  },

  {
    "name": "USA",
    "series": [
      {
        "name": "2010",
        "value": 7870000
      },
      {
        "name": "2011",
        "value": 8270000
      }
    ]
  }
]
